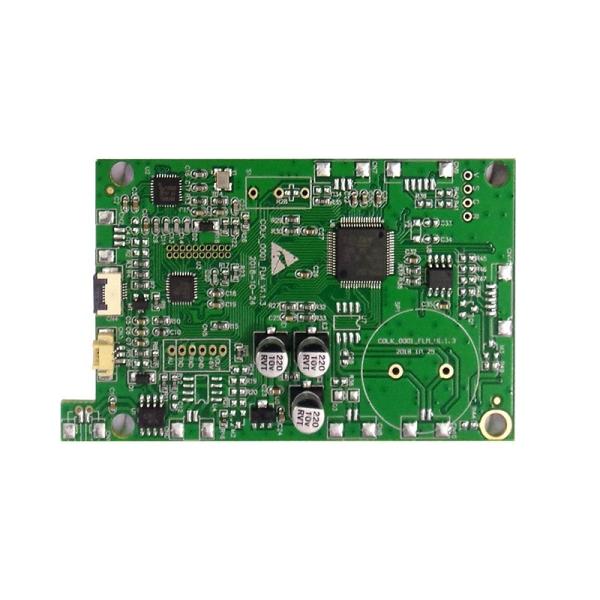

Automotive Pcba Printed Circuit Board Proofing Custom Pcb Circuit Board Quick Turn Pcb Assembly
Assembly testing
Bridge test,AOI test, X-Ray test, ICT(In Circuit Test),FCT(Functional Circuit Test)
FCT(Functional Circuit Test)
Current test, voltage test, high temperature and low temperature test,Drop Impact Test,aging test,water proof test,leakage-proof test and etc.Different test can be done according to your requirement.
Process capability:
| Article | Description | Capability |
| Sercive | PCB and SMT assembly with one-stop service |
| Material | Laminate materials | FR4, high TG FR4, high frequency, alum, FPC |
| Board cutting | Number of layers | 1-48 |
| Min.thickness for inner layers (Cu thickness are excluded) | 0.003”(0.07mm) |
| Board thickness | Standard | (0.1-4mm±10%) |
| Min. | Single/Double:0.008±0.004” |
| 4layer:0.01±0.008” |
| 8layer:0.01±0.008” |
| Bow and twist | no more than 7/1000 |
| Copper weight | Outer Cu weight | 0.5-4 0z |
| Inner Cu weight | 0.5-3 0z |
| Drilling | Min size | 0.0078”(0.2mm) |
| Drill deviation | ±0.002″(0.05mm) |
| PTH hole tolerance | ±0.002″(0.005mm) |
| NPTH hole tolerance | ±0.002″(0.005mm) |
| Solder mask | Color | Green,white,black,red,blue… |
| Min solder mask clearanace | 0.003″(0.07mm) |
| Thickness | (0.012*0.017mm) |
| Silkscreen | Color | white,black,yellow,blue… |
| Min size | 0.006″(0.15mm) |
| E-test | Function Test | 100% Functional test |
| PCBA Testing | X-ray,AOI Test,Functional test |
| Pcb assembly | one-stop service electronic manufacxturer service |
| Component sourcing | Yes |
| Certificate | IATF16949, ISO13485, ISO9001 |
| Delivery time: | PCB | 3-8days |
| PCBA | 10-20days |
| Tolerance of pcb | ±5% |
| Max size of finish board | 700*460mm |
| MOQ | NO MOQ (1pcs) |
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… |
| PCB outline | Square,circle,irregular(with jigs) |
| package | QFN,BGA,SSOP,PLCC,LGA |
| Sub-assembly | Plastic,metal,screen |
OEM PCB and PCBA Manufacturer
1. 4 hours for pcba prototype, no MOQ (MOQ can be 1pcs,30 models PCB prototype per day, 3 million points per day.
2. Mature ISO9001 quality management system,IATF16949:2016 international automotive quality system standard and ISO13485:2016 medical device quality management system.
3. High-precision production machine, 5000 square meters dust-free anti-static workshop, strict workshop temperature and humidity monitoring.
4. 20 years of pcb & pcba manufacturing production and export experience, Famous brand manufacturers in China.
5. ERP order management system, one-click extraction of historical data , component inventory management is more convenient.
6. Free 24 hour online service among worldwide, problems feedback are no longer delayed.
7. Professional engineering team with an average of 15 years of industry experience.
8. NDA. We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.
FASTPCBA focus on muti-varieties and small batch fast pcb proofing over 20 years, with no MOQ, no need to open stencil, fastest pcb delivery in 4hs.
FASTPCBA insist on taking high quality pcb assembly route, we can flexiblely service for small batch pcb prototype, middle batch pcb manufacturing, mass pcb assembly for customers of smart home, industrial control, medical, automotive, military, power communication and aerospace with ISO9001, ISO13485, ISO14000 and IATF16949 certificates.
With professional engineer team, ERP online control, complete quality management, advanced pcb printing & assembly devices, we are confident to provide best quality and precise pcb assembly solutions.
